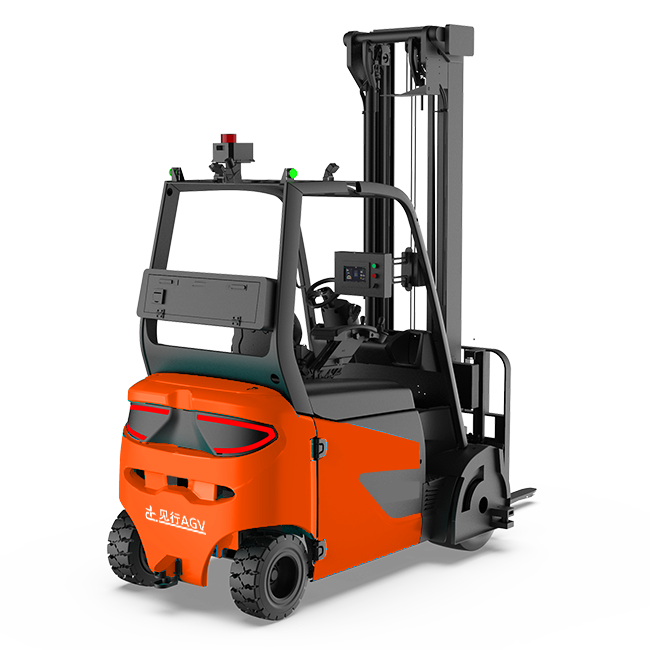

AGV trolley 3500KG, an unmanned forklift truck with balanced weight, is an automatic handling equipment with large load and high precision. It adopts laser navigation technology and is suitable for carrying and stacking heavy objects in logistics storage, factory workshops and other scenes.
Contact online servicePerformance characteristics
High-precision positioning: the repeated positioning accuracy can reach ±10mm, and accurate operation can be realized through laser navigation and autonomous algorithm.
Automatic obstacle avoidance: it can identify static objects, pedestrians and moving objects, and adopt bypass, voice reminder or waiting strategies respectively.
Structural stability: The design of "1 driving/steering front wheel +2 directional wheels" is adopted, with small turning radius and strong bearing stability.
Applicable scenarios and advantages
Applicable scenarios: logistics storage systems, automated factories, workshops, etc., especially suitable for the handling and stacking of 3.5-ton heavy objects.
Core advantages: replacing manual operation and improving efficiency; There is no need for ground positioning facilities (such as magnetic strips and reflectors), and the deployment is flexible.
Basic parameter | name | Heavy unmanned forklift -JX-3500A |
Navigation mode | Laser SLAM navigation | |
Length * width * height (L*W*H) | 3580x1580x2350mm | |
deadweight | 3500kg | |
maximum load | 5700kg | |
Turning radius | 2140mm | |
Maximum supported lifting height | 3000mm | |
Load at maximum supported lifting height | 3000kg | |
Right-angle stacking space | 4260mm | |
Pallet size | 1200*1000mm / 1100*1100mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m~15m adjustable |
Basic parameter | name | Heavy unmanned forklift -JX-3500A |
Navigation mode | Laser SLAM navigation | |
Length * width * height (L*W*H) | 3580x1580x2350mm | |
deadweight | 3500kg | |
maximum load | 5700kg | |
Turning radius | 2140mm | |
Maximum supported lifting height | 3000mm | |
Load at maximum supported lifting height | 3000kg | |
Right-angle stacking space | 4260mm | |
Pallet size | 1200*1000mm / 1100*1100mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m~15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
