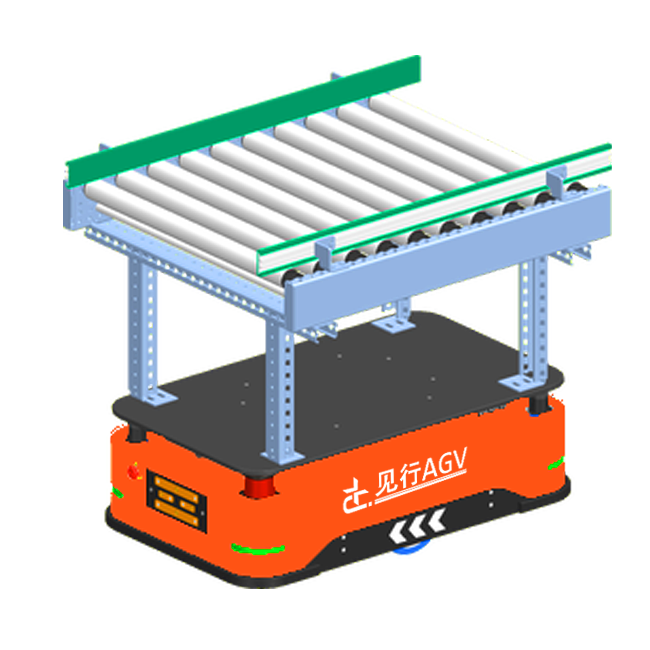

Drum AGV-300KG is an automatic handling equipment with a load of 300 kg, which has the characteristics of flexible scheduling, accurate docking and safety protection, and is suitable for material transfer in many industries such as electronics and automobiles.
Contact online serviceApplication Scenarios and Values
Applicable industries: electronics factory, SMT workshop, auto parts, garment factory, etc.
Typical tasks: production line material transfer, drum line/chain line docking loading and unloading, multi-station round-trip transportation.
Core value: reducing manual walking distance, improving transshipment rhythm, reducing labor intensity and indirectly shortening production cycle.
Functional highlights
Flexible scheduling: support multi-AGV collaboration, flexible path planning, and adapt to complex workshop environment.
Convenient operation: touch screen or client APP sets parameters to support in-situ rotation without turning around in circles.
Expandability: It can be derived into double-layer/multi-layer drum structure, or integrated with modules such as mechanical arms.
Basic parameter | name | Drum handling robot -JX-300A |
Navigation mode | Laser SLAM navigation | |
Driving form | Differential wheel | |
Length * width * height (L*W*H) | 950mm*580mm*780mm | |
deadweight | 230kg | |
maximum load | 300kg | |
type of work | Roller conveyor belt | |
Walking mode | Forward, backward, turn (rotation) | |
minimum turning radius | 525mm | |
Minimum channel width | 900mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Drum handling robot -JX-300A |
Navigation mode | Laser SLAM navigation | |
Driving form | Differential wheel | |
Length * width * height (L*W*H) | 950mm*580mm*780mm | |
deadweight | 230kg | |
maximum load | 300kg | |
type of work | Roller conveyor belt | |
Walking mode | Forward, backward, turn (rotation) | |
minimum turning radius | 525mm | |
Minimum channel width | 900mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
