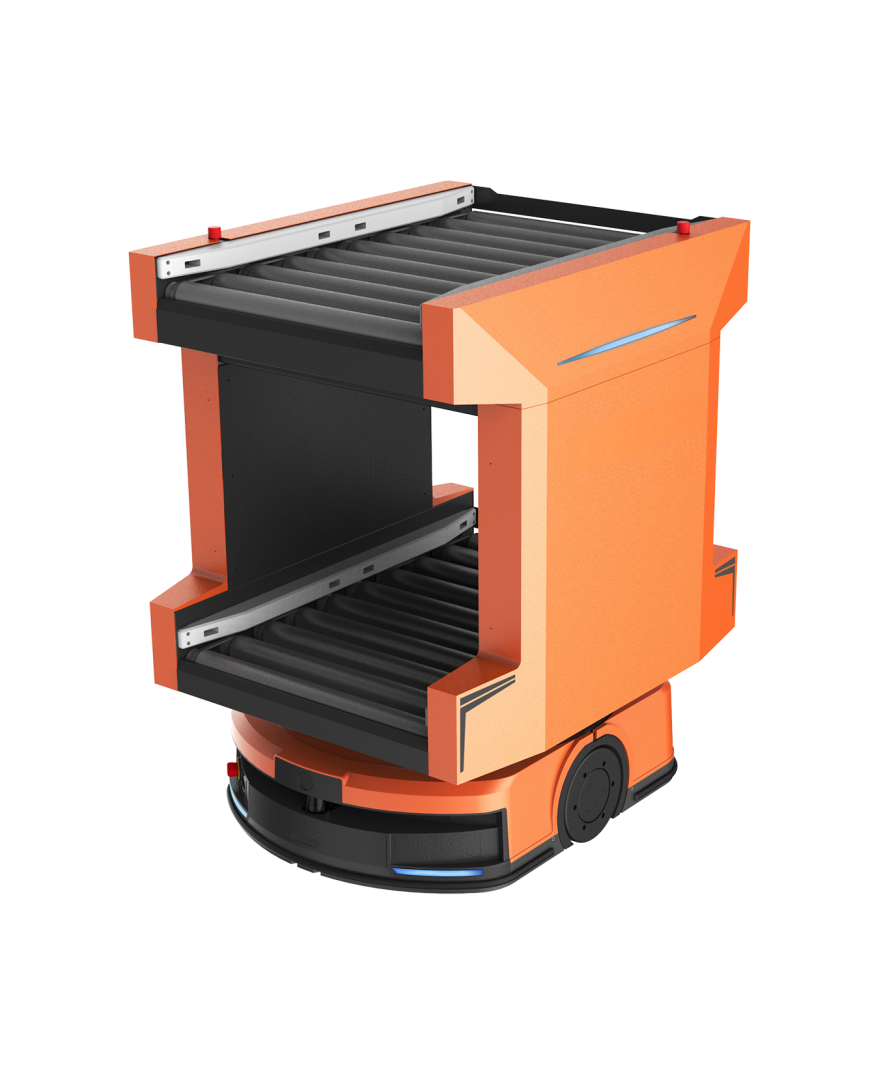

Double-layer, double-row and four-station roller AGV trolley is a kind of roller AGV. The double-layer structure design realizes the simultaneous or independent transportation of upper and lower materials, and the double-row roller layout cooperates with four-station operation, which can meet the synchronous transportation requirements of multiple materials. Its core function is to connect with production lines and conveying lines to complete the automatic transplanting and transshipment of materials, which is suitable for workshop logistics scenes in electronics, automobiles, household appliances and other industries.
Contact online serviceCore Advantages and Application Scenarios
Space utilization rate is improved: the double-layer structure reduces the floor space, which is suitable for high-density material storage and transportation scenarios.
Efficient docking production: the four-station design can handle multiple batches of materials at the same time, which matches the production line rhythm and reduces the waiting time.
Customized adaptation: support non-standard customization, such as roller spacing, load capacity, docking height, etc., to meet the needs of different industries (such as 300kg double-station load in automobile industry).
Typical applications: material transfer in auto parts assembly line, PCB handling in electronic SMT workshop, semi-finished product turnover in home appliance production line, etc.
Basic parameter | name | Drum handling robot -JX-100A |
Navigation mode | QR code /SLAM | |
Length * width * height (L*W*H) | 959mm×940mm×1296mm | |
Docking height | 400mm&1340mm (customizable) | |
Type of connected goods | Material box /box | |
Docking cargo size | Goods size: ≤600*410*260mm | |
Width of goods in docking direction | ≤600mm | |
have a load | ≤100kg*4 | |
AMR chassis platform | M60C（600kg） | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Drum handling robot -JX-100A |
Navigation mode | QR code /SLAM | |
Length * width * height (L*W*H) | 959mm×940mm×1296mm | |
Docking height | 400mm&1340mm (customizable) | |
Type of connected goods | Material box /box | |
Docking cargo size | Goods size: ≤600*410*260mm | |
Width of goods in docking direction | ≤600mm | |
have a load | ≤100kg*4 | |
AMR chassis platform | M60C（600kg） | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable | |
Battery parameters Safety protection | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Number of lidar | 2 | |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
