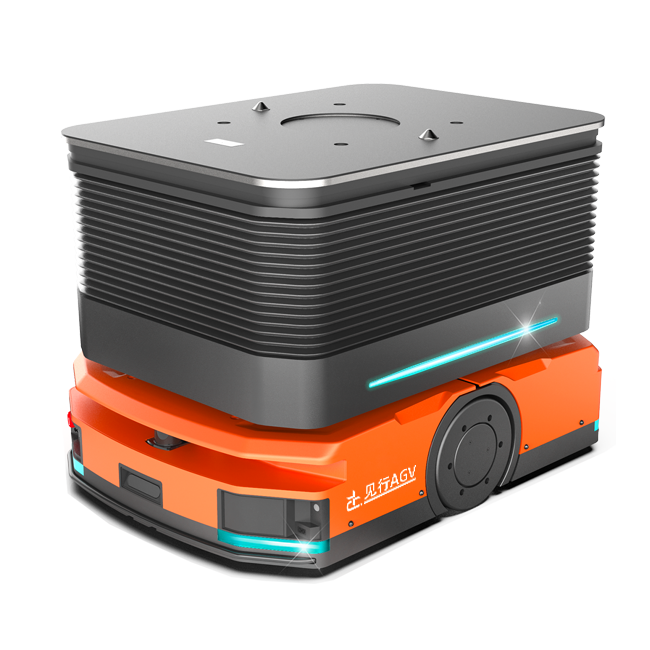

Product features 1. Different jacking heights can be docked and lifted in a wide range; 2. The tray supports rotation, and the chassis can be rotated independently in steering without rotating the tray, thus reducing the rotation radius with load; 3. Support upward-looking pallet code correction; 4, with dust cover and other dust-proof measures, suitable for dust-free workshop; 5, IOT remote switch.
Contact online serviceProduct features
1. Different jacking heights can be docked and lifted in a wide range;
2. The tray supports rotation, and the chassis can be rotated independently in steering without rotating the tray, thus reducing the rotation radius with load;
3. Support upward-looking pallet code correction;
4, with dust cover and other dust-proof measures, suitable for dust-free workshop;
5, IOT remote switch.
Basic parameter | name | Customized handling robot -JX-400A |
Navigation mode | QR code /SLAM | |
Typical usage scenarios | PCB handling scene | |
Length * width * height (L*W*H) | 940*650*630mm | |
Docking height | 620-1010mm (lifting) | |
Type of connected goods | PCB material tray | |
Docking cargo size | Cargo size: 800*700*745mm | |
have a load | 400kg | |
Vehicle type | elevating | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Customized handling robot -JX-400A |
Navigation mode | QR code /SLAM | |
Typical usage scenarios | PCB handling scene | |
Length * width * height (L*W*H) | 940*650*630mm | |
Docking height | 620-1010mm (lifting) | |
Type of connected goods | PCB material tray | |
Docking cargo size | Cargo size: 800*700*745mm | |
have a load | 400kg | |
Vehicle type | elevating | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
