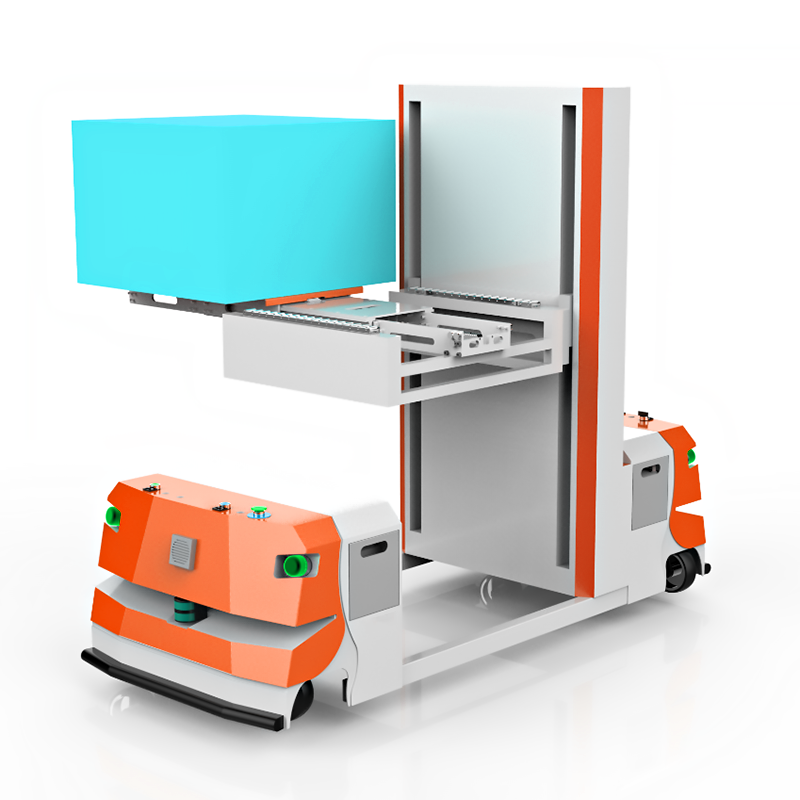

Two-way side fork AGV car is an automatic handling equipment with lateral fork and two-way driving ability. Its core advantages are high space utilization and adaptability to long/irregular goods, which are widely used in narrow channel storage and special material scenes.
Contact online serviceTwo-way side fork AGV is an automatic guided vehicle equipped with a side telescopic fork, which supports two-way driving. The fork is installed on the side of the car body, so it is not necessary to complete the side fork of the goods directly, and at the same time it has the ability of two-way movement to reduce the turning operation. Its core functions include:
Lateral telescopic fork taking: Material transfer is realized by three-section telescopic fork (fixed fork+middle fork+front fork).
Intelligent navigation and obstacle avoidance: support laser, SLAM, magnetic stripe and other navigation modes, and be equipped with sensors to realize autonomous obstacle avoidance.
System docking: it can be integrated with WMS, ERP and other management systems to realize automatic scheduling.
Application Scenarios and Selection Suggestions
Typical application industries:
Handling long materials such as wood, steel and pipes;
Intelligent three-dimensional warehouse with narrow channel and automatic storage system;
Scenes where special materials need to be handled, such as automobile manufacturing and glass building materials.
Basic parameter | name | Customized handling robot -JX-500A |
Navigation mode | Laser SLAM navigation | |
Load mode | Side fork type | |
Length * width * height (L*W*H) | L2500*W1350*H1200mm | |
deadweight | 500kg | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Customized handling robot -JX-500A |
Navigation mode | Laser SLAM navigation | |
Load mode | Side fork type | |
Length * width * height (L*W*H) | L2500*W1350*H1200mm | |
deadweight | 500kg | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, turn | |
Safety induction range | 3m-15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
