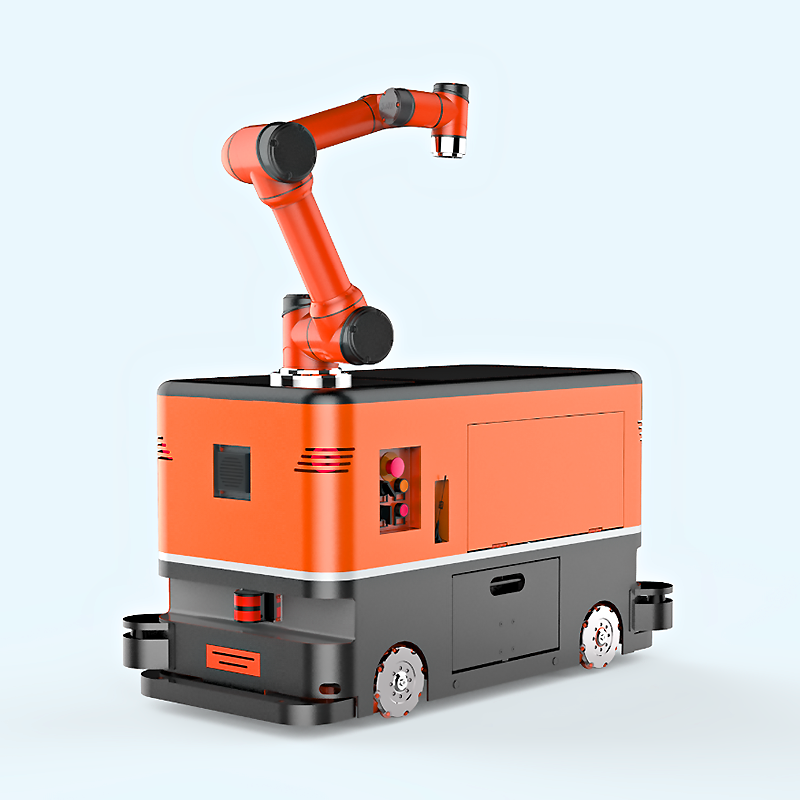

Omni-directional manipulator cooperative AGV car (speculation) is an automatic equipment that combines omni-directional mobile technology and cooperative manipulator. It has the ability of flexible movement and fine operation, and can independently complete tasks such as material handling, loading and unloading, sorting, etc. in complex environments, and is suitable for intelligent manufacturing, e-commerce warehousing, electronic processing and other scenes that require high flexibility.
Contact online serviceOmni-directional manipulator cooperative AGV car (speculation) is an automatic equipment that combines omni-directional mobile technology and cooperative manipulator. It has the ability of flexible movement and fine operation, and can independently complete tasks such as material handling, loading and unloading, sorting, etc. in complex environments, and is suitable for intelligent manufacturing, e-commerce warehousing, electronic processing and other scenes that require high flexibility.
Application scenarios and advantages
Typical scenarios: 3C electronic workshop material transfer, e-commerce warehouse order sorting, and auto parts assembly assistance.
Core advantages:
Flexibility: omni-directional movement+manipulator cooperation, replacing the traditional fixed production line and responding to the adjustment of production line quickly;
Safety: the cooperative manipulator has the function of safe stop, which can be used in man-machine mixed working environment;
Efficiency: 24-hour uninterrupted work, combined with intelligent dispatching system, the handling efficiency is 3-5 times higher than that of manual work.
Basic parameter | name | Customized handling robot-JX-100A |
Navigation mode | Slam laser navigation | |
Driving form | Mecanum wheel | |
Length * width * height (L*W*H) | L1350*W600*H550(mm) | |
maximum load | 100kg | |
Chassis ground clearance | 20mm | |
Load mode | Cooperative type | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, in-situ rotation, lateral movement | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Customized handling robot-JX-100A |
Navigation mode | Slam laser navigation | |
Driving form | Mecanum wheel | |
Length * width * height (L*W*H) | L1350*W600*H550(mm) | |
maximum load | 100kg | |
Chassis ground clearance | 20mm | |
Load mode | Cooperative type | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, in-situ rotation, lateral movement | |
Safety induction range | 3m-15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
