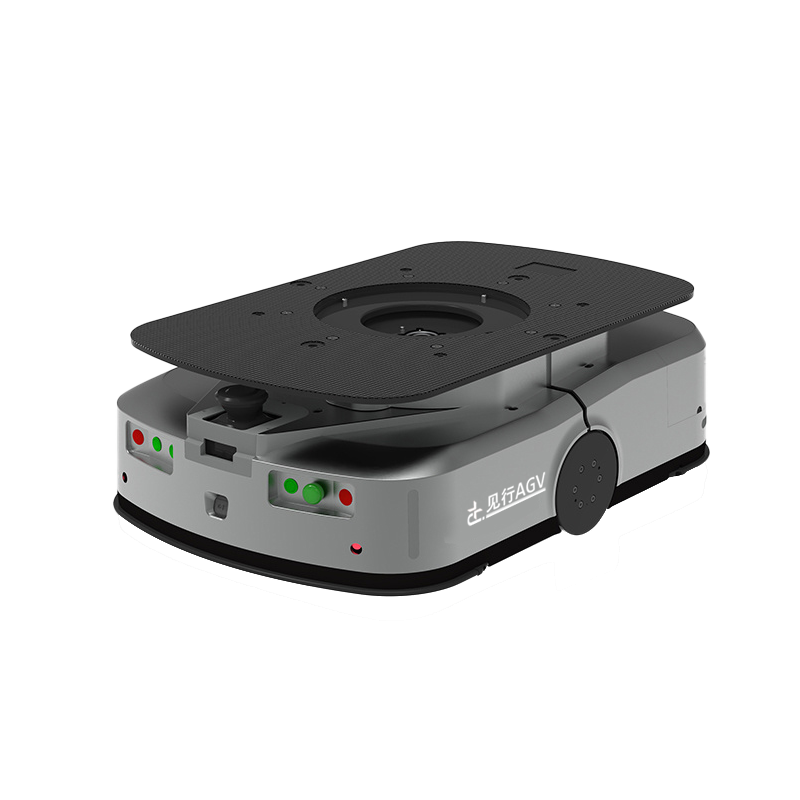

Explosion-proof latent lifting AGV has been certified by authorities such as ⅡCT4. Laser SLAM is used for navigation, accurate positioning, and can sneak into the bottom of the skip for lifting and transshipment. Equipped with explosion-proof motor and multiple protection, it can work in high-risk scenes such as chemical industry, support automatic charging, and can cooperate with multiple units to improve logistics efficiency.
Contact online serviceExplosion-proof latent lifting AGV has been certified by authorities such as ⅡCT4. Laser SLAM is used for navigation, accurate positioning, and can sneak into the bottom of the skip for lifting and transshipment. Equipped with explosion-proof motor and multiple protection, it can work in high-risk scenes such as chemical industry, support automatic charging, and can cooperate with multiple units to improve logistics efficiency.
Basic parameter | Name | Customized handling robot -JX-5000B |
Navigation mode | QR code/laser SLAM | |
Overall dimensions L*W*H | 2500*1500*450(mm) | |
have a load | 5000kg | |
deadweight | 1200kg | |
Jacking height | 60mm | |
Rotating diameter | 2800mm | |
ground clearance | 40mm | |
Lifting table size | 2000*920mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward and backward two-way, in-situ rotation and transverse movement | |
Safety induction range | 3m~15m adjustable |
Basic parameter | Name | Customized handling robot -JX-5000B |
Navigation mode | QR code/laser SLAM | |
Overall dimensions L*W*H | 2500*1500*450(mm) | |
have a load | 5000kg | |
deadweight | 1200kg | |
Jacking height | 60mm | |
Rotating diameter | 2800mm | |
ground clearance | 40mm | |
Lifting table size | 2000*920mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward and backward two-way, in-situ rotation and transverse movement | |
Safety induction range | 3m~15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Ferrous lithium phosphate |
Integrated endurance | 8h | |
Charging time(10-80%) | ≤2h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
