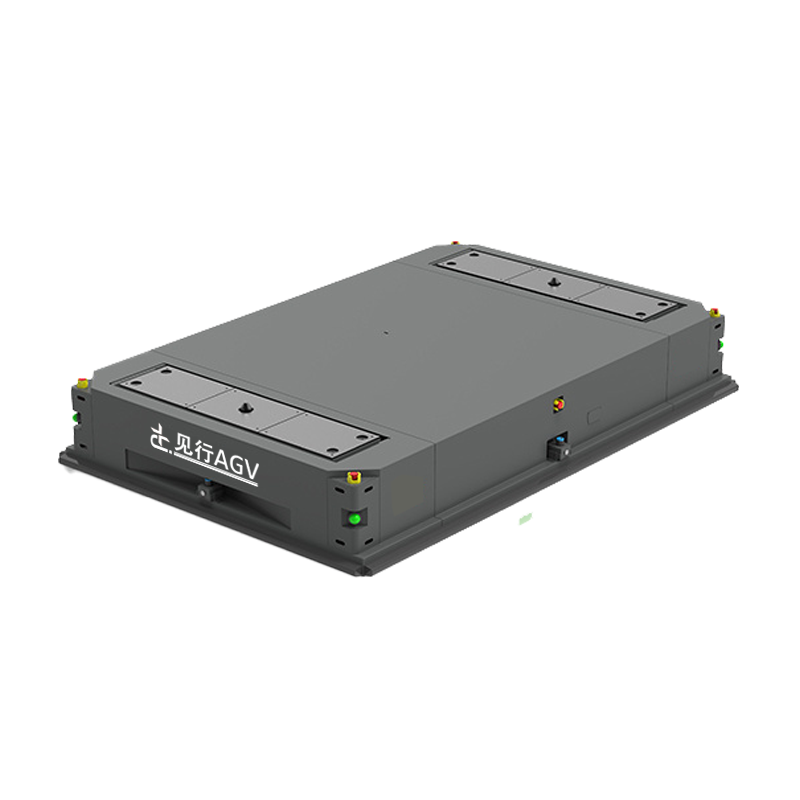

The explosion-proof latent AGV has been certified by authorities such as ⅡC T4 and ATEX, and its compact body can be lifted and transported at the bottom of the skip. Equipped with laser SLAM navigation, accurate positioning, flameproof motor and 360 obstacle avoidance protection. Support automatic charging and multi-vehicle cooperation, adapt to high-risk scenes such as chemical industry and hazardous chemicals warehouse, and realize 24-hour unmanned logistics.
Contact online serviceThe explosion-proof latent AGV has been certified by authorities such as ⅡC T4 and ATEX, and its compact body can be lifted and transported at the bottom of the skip. Equipped with laser SLAM navigation, accurate positioning, flameproof motor and 360 obstacle avoidance protection. Support automatic charging and multi-vehicle cooperation, adapt to high-risk scenes such as chemical industry and hazardous chemicals warehouse, and realize 24-hour unmanned logistics.
Basic parameter | Name | Customized handling robot -JX-600A |
Navigation mode | Laser+QR code composite navigation | |
explosive-proof grade | explosive-proof grade | |
Overall dimensions L*W*H | 1400*860*480(mm) | |
have a load | 600kg | |
deadweight | 350kg | |
Jacking height | 60mm | |
Rotating diameter | 1475mm | |
ground clearance | 30mm | |
Lifting table size | Lifting table size | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Front and back two-way, left and right turn | |
Safety induction range | 3m~15m adjustable |
Basic parameter | Name | Customized handling robot -JX-600A |
Navigation mode | Laser+QR code composite navigation | |
explosive-proof grade | explosive-proof grade | |
Overall dimensions L*W*H | 1400*860*480(mm) | |
have a load | 600kg | |
deadweight | 350kg | |
Jacking height | 60mm | |
Rotating diameter | 1475mm | |
ground clearance | 30mm | |
Lifting table size | Lifting table size | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Front and back two-way, left and right turn | |
Safety induction range | 3m~15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Ferrous lithium phosphate |
Integrated endurance | 8h | |
Charging time(10-80%) | ≤2h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
