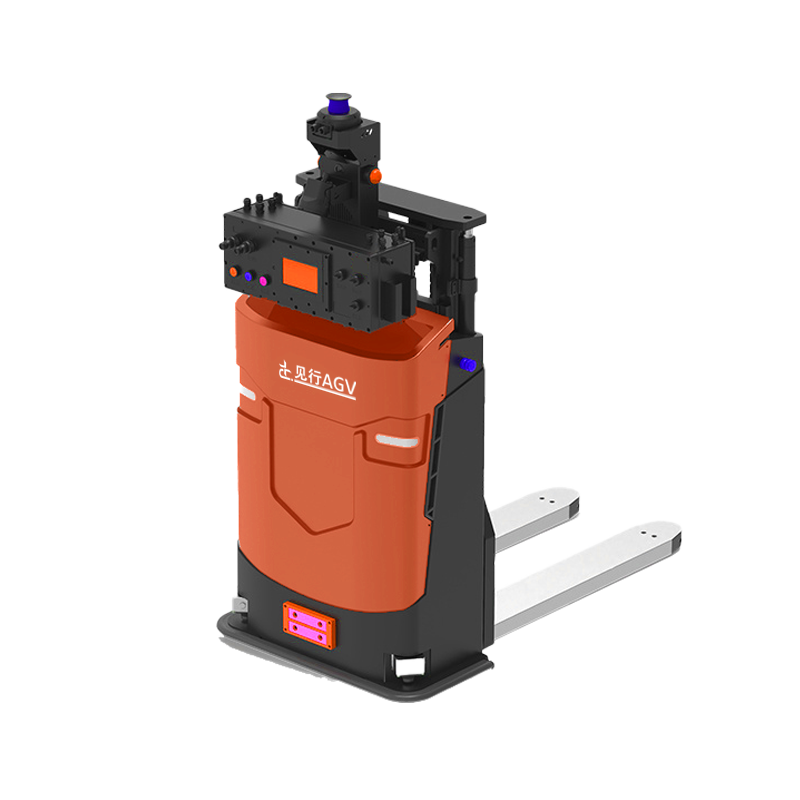

The explosion-proof stacking forklift AGV has obtained the explosion-proof certification of ATEX, IECEx, etc., and adopts laser SLAM navigation, with accurate positioning to 10 mm. Can automatically complete high shelf access and stacking, with 360 safety protection, support automatic charging and multi-vehicle cooperation. Adapt to high-risk scenes such as chemical industry and hazardous chemicals warehouse to improve the efficiency of warehousing and logistics.
Contact online serviceThe explosion-proof stacking forklift AGV has obtained the explosion-proof certification of ATEX, IECEx, etc., and adopts laser SLAM navigation, with accurate positioning to 10 mm. Can automatically complete high shelf access and stacking, with 360 safety protection, support automatic charging and multi-vehicle cooperation. Adapt to high-risk scenes such as chemical industry and hazardous chemicals warehouse to improve the efficiency of warehousing and logistics.
Basic parameter | Name | Customized handling robot -JX-1500B |
Navigation mode | laser SLAM | |
explosive-proof grade | EX db IIB T4 | |
Overall dimensions L*W*H | 1700*1070*1850(mm) | |
have a load | 1500kg | |
deadweight | 980kg | |
hoisting height | 1200/3000mm | |
Fork size | 1070/ 185/60mm | |
Outer width of fork | 570/680mm | |
Load center distance | 600mm | |
minimum turning radius | 1400mm | |
Minimum channel width | 2200mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Front and back two-way, left and right turn | |
Safety induction range | 3m~15m adjustable |
Basic parameter | Name | Customized handling robot -JX-1500B |
Navigation mode | laser SLAM | |
explosive-proof grade | EX db IIB T4 | |
Overall dimensions L*W*H | 1700*1070*1850(mm) | |
have a load | 1500kg | |
deadweight | 980kg | |
hoisting height | 1200/3000mm | |
Fork size | 1070/ 185/60mm | |
Outer width of fork | 570/680mm | |
Load center distance | 600mm | |
minimum turning radius | 1400mm | |
Minimum channel width | 2200mm | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Front and back two-way, left and right turn | |
Safety induction range | 3m~15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Ferrous lithium phosphate |
Integrated endurance | 8h | |
Charging time(10-80%) | ≤2h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
