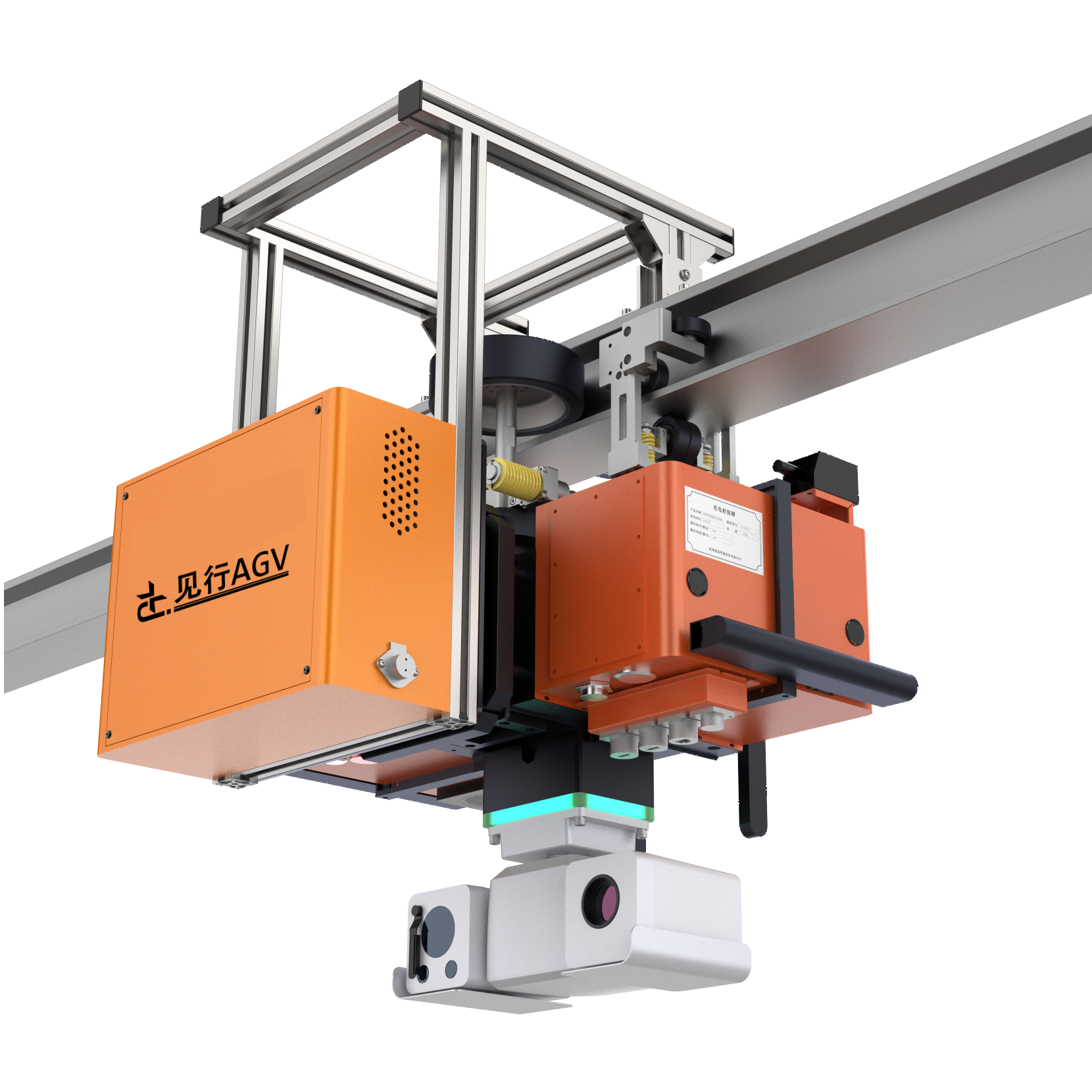

The track inspection robot has obtained explosion-proof certification such as Ex d IIC T4, runs along the preset track, and is equipped with infrared thermal imager and gas sensor. Support high-definition image acquisition, equipment temperature measurement and abnormal early warning, accurate positioning, strong stability, and no occupation of ground space. Suitable for piping corridors, power stations, chemical pump areas and other scenes, and can be patrolled unattended for 24 hours.
Contact online serviceThe track inspection robot has obtained explosion-proof certification such as Ex d IIC T4, runs along the preset track, and is equipped with infrared thermal imager and gas sensor. Support high-definition image acquisition, equipment temperature measurement and abnormal early warning, accurate positioning, strong stability, and no occupation of ground space. Suitable for piping corridors, power stations, chemical pump areas and other scenes, and can be patrolled unattended for 24 hours.
parameter | value |
Overall machine size | 650*350*450mm |
gradeability | ≥20° |
Rotation diameter | ≤2000mm |
Endurance | 6H |
Walking mode | Double motor drive |
Navigation mode | encoder+RFID |
positioning accuracy | ±10mm |
Charging mode | Distributed wireless charging/manual charging |
