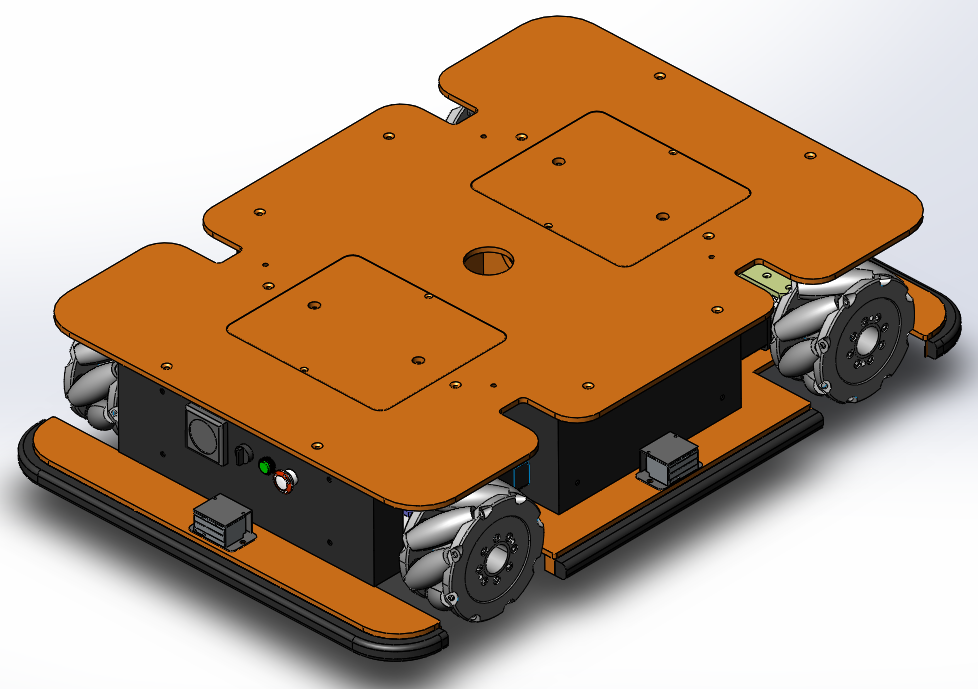

The AGV chassis of wheat wheel is equipped with McNamham wheel, which supports omni-directional movement and in-situ rotation, and is compact in structure and suitable for narrow space. With high-precision navigation and control system, the positioning accuracy reaches millimeter level, and the response is sensitive, which is widely used in flexible production scenes such as 3C, automobiles and warehousing.
Contact online serviceThe AGV chassis of wheat wheel is equipped with McNamham wheel, which supports omni-directional movement and in-situ rotation, and is compact in structure and suitable for narrow space. With high-precision navigation and control system, the positioning accuracy reaches millimeter level, and the response is sensitive, which is widely used in flexible production scenes such as 3C, automobiles and warehousing.
Basic parameter | Name | Handling robot -JX-500B |
Navigation mode | laser SLAM | |
Driving form | Mecanum wheel | |
Overall dimensions L*W*H | 900*600*400(mm) | |
deadweight | 220KG | |
maximum load | 500KG | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward and transverse movement | |
Safety induction range | 3m~15m adjustable |
Basic parameter | Name | Handling robot -JX-500B |
Navigation mode | laser SLAM | |
Driving form | Mecanum wheel | |
Overall dimensions L*W*H | 900*600*400(mm) | |
deadweight | 220KG | |
maximum load | 500KG | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±5mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward and transverse movement | |
Safety induction range | 3m~15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Ferrous lithium phosphate |
Integrated endurance | 8h | |
Charging time(10-80%) | ≤2h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
