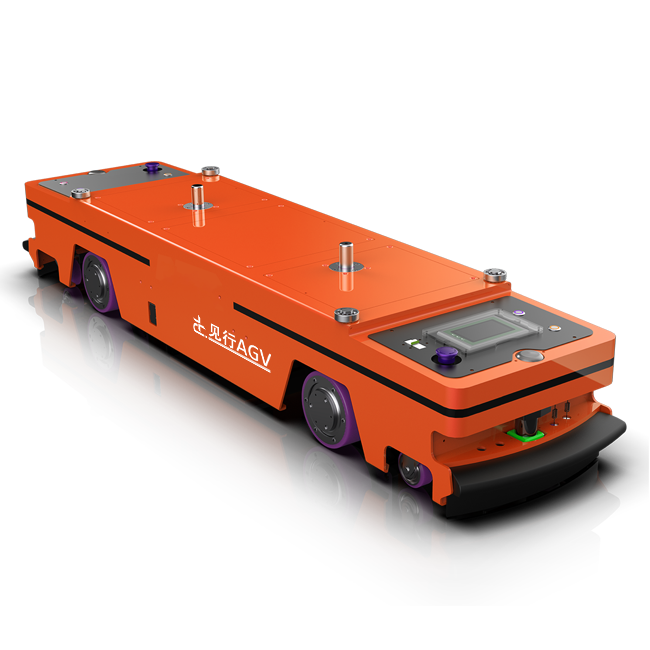

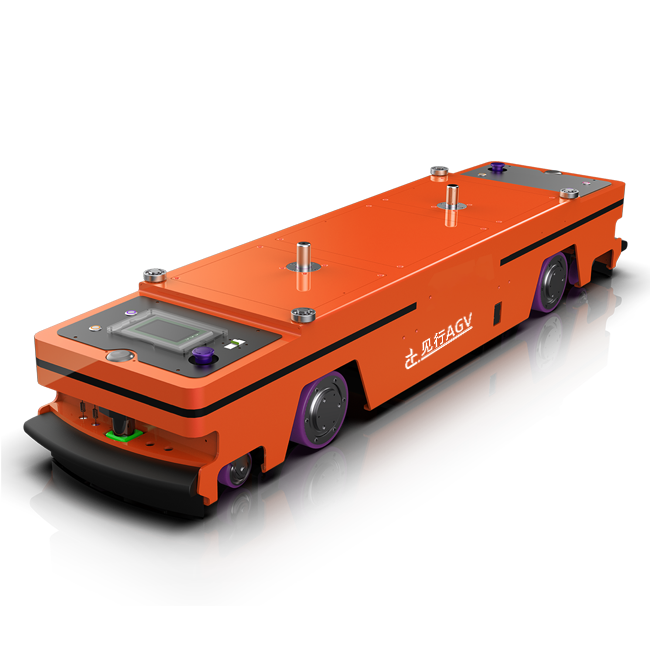

The bidirectional laser SLAM-guided latent traction AGV is an automated equipment capable of sneaking into the bottom of the cargo carrier from two directions, achieving autonomous navigation through laser SLAM technology, and towing goods. Its "bidirectional" feature enhances operational flexibility, allowing it to complete round-trip tasks without turning around, while laser SLAM navigation eliminates the need for pre-laid magnetic strips, adapting to complex dynamic environments.
Contact online serviceApplicable scenarios
Industrial material transfer: It can tow trolleys loaded with parts and semi-finished products, facilitating automated transportation between workshop production lines or within warehouses.
Multi-zone linkage: Laser SLAM navigation technology enables it to adapt to complex environments, supports cross-zone path planning, and is suitable for large factories or logistics centers.
Core strengths
High flexibility: bidirectional travel + laser SLAM navigation, no need to modify the ground environment, quick deployment.
Stable Load: With a rated load of 1000KG, it meets the transportation needs of small and medium-sized industrial materials, and its structural design is compatible with common trolley specifications.
Basic Parameters | Name | Latent traction type handling robot - JX-1000A |
Navigation Method | SLAM navigation/QR code navigation | |
Drive Type | Differential drive | |
Length × Width × Height (L × W × H) | L1900*W420*H290(mm) | |
Net Weight (Including Battery) | 362KG | |
Maximum Load | 1000KG/1500KG | |
Turning Radius | ||
Network Communication | RF / WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Latent traction type handling robot - JX-1000A |
Navigation Method | SLAM navigation/QR code navigation | |
Drive Type | Dual-wheel differential | |
Length × Width × Height (L × W × H) | L1900*W420*H290(mm) | |
Net Weight (Including Battery) | 362KG | |
Maximum Load | 1000KG/1500KG | |
Turning Radius | ||
Network Communication | RF / WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
