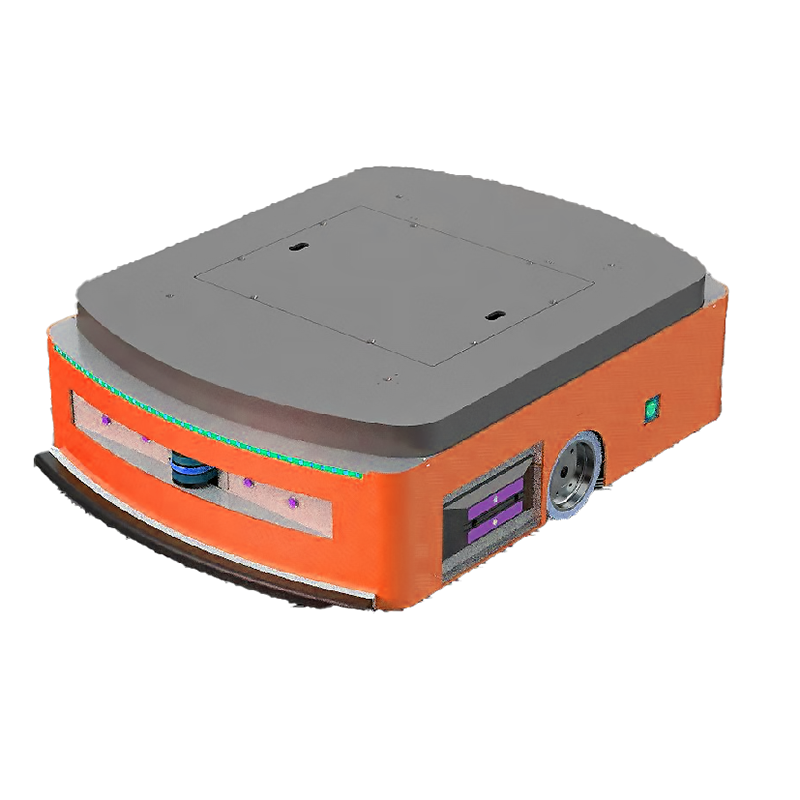

The bidirectional lifting AGV vehicle (500KG class) is a heavy-duty handling equipment that integrates bidirectional travel, lifting function, and intelligent navigation. It is suitable for automated material transfer in factories and warehouses, and possesses core advantages such as high load capacity, flexible maneuverability, and intelligent recognition.
Contact online serviceThis AGV vehicle is specifically designed for 500KG-level heavy-load scenarios, supporting bidirectional travel to accommodate narrow passageways. It utilizes a lifting mechanism to automatically retrieve and place materials, and is equipped with laser navigation and automatic recognition technology, enabling it to complete handling tasks without human intervention. Its core functions include:
Bidirectional travel: With a small turning radius, it can maneuver flexibly in narrow spaces;
Lifting and handling: Integrated lifting device capable of automatically lifting or towing material trolleys;
Intelligent navigation: Laser navigation technology enables precise positioning and path planning.
Applicable scenarios
Factory workshop: handling large equipment parts and stacking palletized goods;
Warehousing and logistics: Material transfer within narrow aisles to enhance space utilization.
core value
Efficiency improvement: Automatically receiving instructions and independently completing handling tasks, reducing labor costs;
Precision and reliability: Laser navigation and automatic identification functions reduce human error;
Flexible adaptation: Bidirectional design and small turning radius accommodate complex venues.
Basic Parameters | Name | Lurking Lifting Handling Robot - JX-500A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Differential drive | |
Length × Width × Height (L × W × H) | L1100*W760*H253 (mm) | |
Net Weight (Including Battery) | 270KG | |
Maximum Load | 500KG | |
Maximum lifting stroke | 60mm | |
Network Communication | RF / WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Lurking Lifting Handling Robot - JX-500A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Dual-wheel differential | |
Length × Width × Height (L × W × H) | L1100*W760*H253 (mm) | |
Net Weight (Including Battery) | 500KG | |
Maximum Load | 500KG | |
Maximum lifting strokev | 60mm | |
Network Communication | RF / WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
