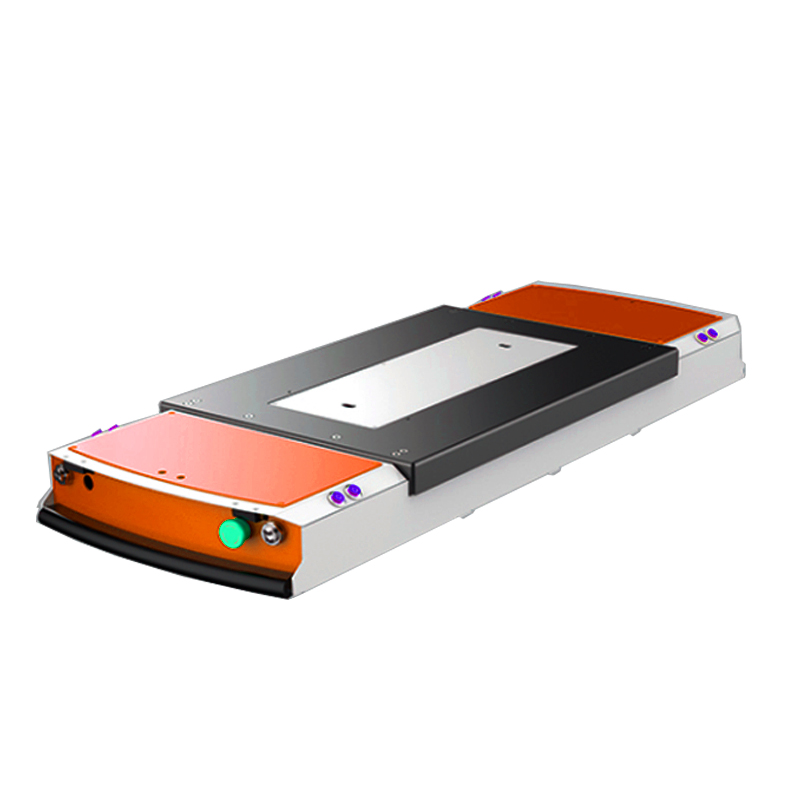

The ultra-thin lifting AGV trolley is an automated handling equipment with an extremely low body height and lifting function. Its core advantage lies in its adaptability to low-ceilinged spaces, and its application in intelligent logistics scenarios in the manufacturing industry has accelerated in recent years.
Contact online serviceCore Features and Application Scenarios
Ultra-thin design: The vehicle body can be as low as "the diameter of a football" (approximately 22 centimeters), making it suitable for scenarios with special height requirements, such as sneaking under a trolley for traction or lifting operations.
Lifting function: The lifting and lowering of goods is achieved through structures such as lifting cylinders and guide posts. Some models support customizable loads (100-1000KG) and lifting heights.
Typical applications: material transfer in electronics and home appliance factories, as well as picking from low-height shelves in intelligent warehouses, especially suitable for production lines or warehouse environments with height constraints.
Summary of core advantages
Spatial adaptability: The ultra-thin body breaks through the height limitations of traditional AGVs, adapting to low-ceiling work environments.
Efficiency improvement: In the case of Shaanxi Automobile, AGV has improved the obstacle avoidance efficiency in complex scenarios by three times, enabling 24-hour continuous operation.
Customization and flexibility: Load capacity, lifting height, and navigation method (magnetic strip/laser) can be customized according to specific needs.
Basic Parameters | Name | Lurking Lifting Handling Robot - JX-150 |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Differential drive | |
Length × Width × Height (L × W × H) | L1000*W350*H100 (mm) | |
Net Weight (Including Battery) | 270KG | |
Maximum Load | 150KG | |
Maximum lifting stroke | 60mm | |
Network Communication | WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Lurking Lifting Handling Robot - JX-150 |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Dual-wheel differential | |
Length × Width × Height (L × W × H) | L1000*W350*H100 (mm) | |
Net Weight (Including Battery) | 220KG (±10KG） | |
Maximum Load | 500KG | |
Maximum lifting stroke | 60mm | |
Network Communication | WiFi / 5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
