Contact online serviceProduct advantages a. Flexible operation It possesses the capabilities of making a 90-degree turn, executing a 180-degree spin in place, and moving sideways; b. Multi-station, more efficient The double-layer, double-station roller supports the simultaneous transfer or empty-full exchange of four baskets of materials; c. Can take the elevator up and down It can be linked with ordinary elevators and has the function of operating across floors; d. Easy to use Operate autonomously according to scheduling instructions, without requiring manual intervention during the production process.

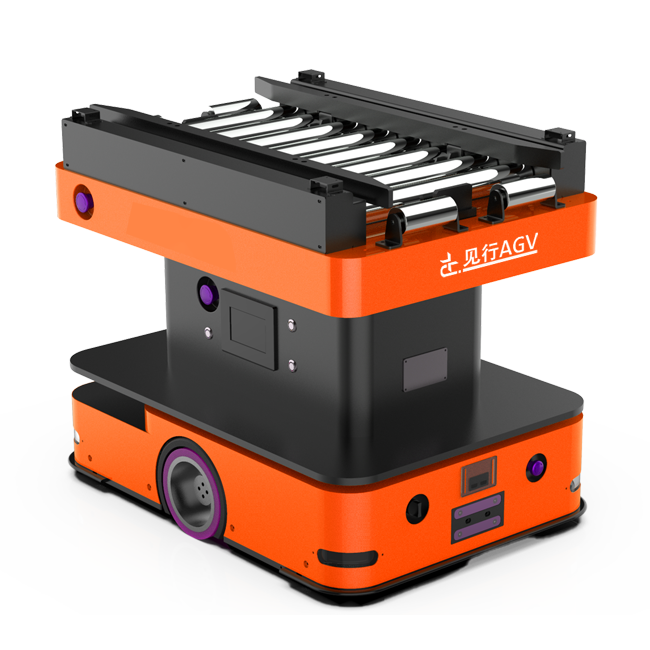

Basic Parameters | Name | Back-carrying and Transfer-loading Robot - JX-100A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Differential drive | |
Length × Width × Height (L × W × H) | L940*W680*H755 (mm) | |
Net Weight (Including Battery) | 300KG | |
Maximum Load | 100kg | |
rotating diameter | 1250mm | |
connection height | 820mm | |
| Support material size | 700*450mm | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Back-carrying and Transfer-loading Robot - JX-100A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Dual-wheel differential | |
Length × Width × Height (L × W × H) | L940*W680*H755 (mm) | |
Net Weight (Including Battery) | 300KG | |
Maximum Load | 100KG | |
Turning Radius | 1250mm | |
connection height | 820mm | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
