Intelligent handling and flexible production Material transportation mode: It can carry pallets, material boxes, or towed material carts, enabling one-point to multi-point material transfer, and supports selective transfer to stations through a call system. Multi-AGV collaboration capability: Multiple AGVs can be coordinated to form a flexible assembly line, replacing traditional assembly lines and adapting to scenarios involving frequent transportation and long-cycle material supply.
Contact online serviceIntelligent handling and flexible production Material transportation mode: It can carry pallets, material boxes, or tow material carts, enabling one-point to multi-point material transfer, and supports selective transfer to stations through a call system. Multi-AGV collaboration capability: Multiple AGVs can be coordinated to form a flexible assembly line, replacing traditional assembly lines and adapting to scenarios involving frequent transportation and long-cycle material supply. Flexible docking and operation Bidirectional travel and docking: Compact structure, supporting forward and backward bidirectional travel. Some models are equipped with rollers on the top, allowing automatic docking with external equipment for loading and unloading. Customized route: Customized paths are guided through magnetic strips or lasers, supporting multi-station docking to meet complex production layout requirements. Efficiency and safety guarantee Quick response: Stable handling speed, efficient transportation of parts, and shortened production turnaround time. Multiple safeguards: audible and visual alarms, wireless communication (WiFi/RF), and dual anti-collision design ensure safe human-machine collaboration.

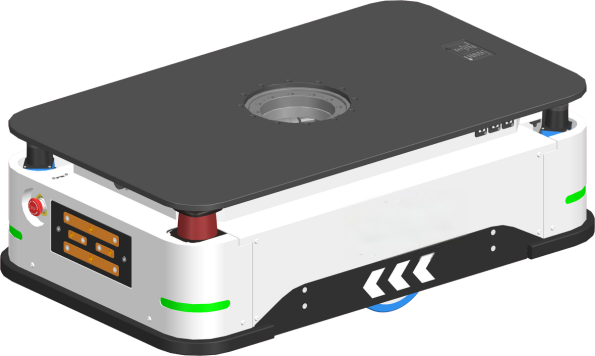

Basic Parameters | Name | Backpack transfer handling robot - JX-1000A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Differential drive | |
Length × Width × Height (L × W × H) | 950mm×580mm×300mm | |
Net Weight (Including Battery) | 210KG | |
Maximum Load | 1000KG | |
rotating diameter | 1060±20mm | |
Operating space (no-load, single/dual channel) | 900mm / 1650mm | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Backpack transfer handling robot - JX-1000A |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Dual-wheel differential | |
Length × Width × Height (L × W × H) | 950mm×580mm×300mm | |
Net Weight (Including Battery) | 210KG | |
Maximum Load | 1000KG | |
rotating diameter | 1060±20mm | |
Operating space (no-load, single/dual channel) | 900mm / 1650mm | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
