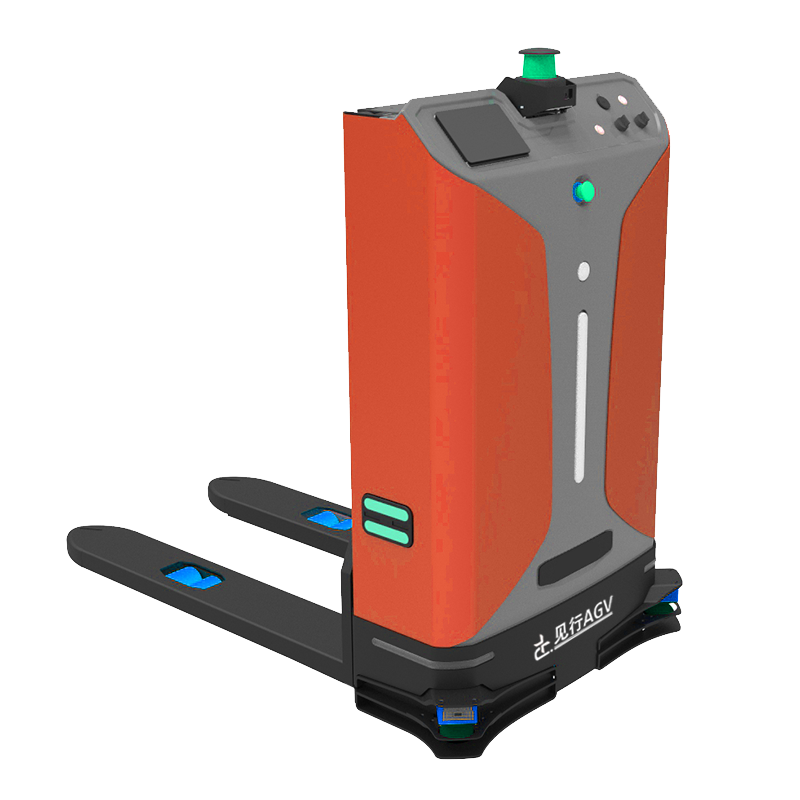

The mini stacking forklift AGV is a compact and highly flexible automated handling equipment, featuring core functions such as autonomous navigation, intelligent scheduling, and 24-hour continuous operation. Its parameters highlight its small size, adaptability to narrow passageways, and customization characteristics.
Contact online serviceThe mini-stacker AGV, through its miniaturized design, high-precision navigation, and intelligent collaboration, effectively addresses the issues of low space utilization and high labor costs in traditional warehousing. It is particularly suitable for scenarios requiring high-frequency, small-batch handling, such as e-commerce and 3C electronics. Details of main functions Autonomous navigation and path planning: Utilizing composite navigation technologies such as laser SLAM and visual recognition, it automatically plans the optimal path and dynamically avoids obstacles. Intelligent dispatching and cluster collaboration: Through a central system, multi-vehicle coordination is achieved, reducing transportation distance by 18%-25% and enhancing overall efficiency. Fault detection and maintenance: Equipped with real-time status monitoring and log query functions, predictive maintenance keeps downtime due to faults within 2%. Customized expansion: Supports customization of parameters such as fork size and lifting height, adapting to different pallet types and storage scenarios.
Basic Parameters | Name | Handling forklift - JX-1400A |
Navigation Method | SLAM navigation/reflective plate navigation | |
Drive Type | differential wheel | |
Length × Width × Height (L × W × H) | L1560*W882*H1800mm | |
Net Weight (Including Battery) | 680KG | |
Maximum Load | 1400kg | |
Standard lifting height | 125-3000mm | |
Fork size (s/e/l) (customizable) | 55/180/1150mm | |
Fork width outside | 680mm | |
Fork face height above ground | 85mm | |
Network Communication | WIFI/5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Handling forklift - JX-1400A |
Navigation Method | SLAM navigation/reflective plate navigation | |
Drive Type | differential wheel | |
Length × Width × Height (L × W × H) | L1560*W882*H1800mm | |
Net Weight (Including Battery) | 680KG | |
Maximum Load | 1400kg | |
Standard lifting height | 125-3000mm | |
Fork size (s/e/l) (customizable) | 55/180/1150mm | |
Fork width outside | 680mm | |
Fork face height above ground | 85mm | |
minimum turning radius | 1130mm | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
