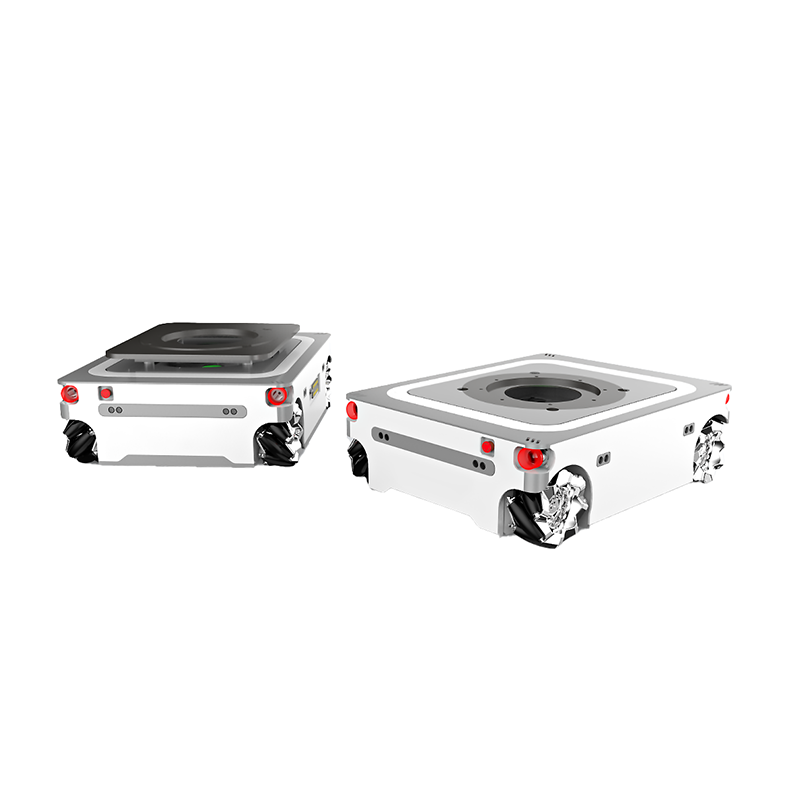

Latent AGV can realize automatic lifting, handling and docking by lurking at the bottom of the material unit, without manual driving, and is suitable for narrow space and high-density storage scenes. Its structure includes driving unit, jacking mechanism, navigation system, etc.
Contact online serviceTypical application scenarios
3C warehousing: automatic handling of boxes/racks, improving picking efficiency.
Automobile manufacturing: production line parts distribution, trans-regional heavy material transfer.
Plane reservoir area: For example, the case of Suzhou Branch of China Telecom optimizes the distribution of light and small materials through small AGV.
Selection suggestion
According to the load requirement: light weight is less than 300kg, and 1000kg is optional for heavy scenes.
Navigation adaptation: old warehouse gives priority to laser SLAM (zero transformation), and high-precision scenes can be superimposed with QR code navigation.
System integration: select the model supporting WMS/MES docking to realize automatic task distribution.
Basic parameter | name | Customized handling robot-JX-500A |
Navigation mode | Slam laser navigation | |
Driving form | Mecanum wheel | |
Length * width * height (L*W*H) | L900*W700*H280(mm) | |
maximum load | 500kg | |
Chassis ground clearance | 20mm | |
Load mode | Lifting type | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, in-situ rotation, lateral movement | |
Safety induction range | 3m-15m adjustable |
Basic parameter | name | Customized handling robot-JX-500A |
Navigation mode | Slam laser navigation | |
Driving form | Mecanum wheel | |
Length * width * height (L*W*H) | L900*W700*H280(mm) | |
maximum load | 500kg | |
Chassis ground clearance | 20mm | |
Load mode | Lifting type | |
Network communication | Wireless Wi-Fi/ Optical Communication /5G | |
Ambient temperature and humidity range | Temperature: 0~50℃/humidity: 10~90%, without compression and condensation. | |
IP grade | IP20 | |
performance parameter | Trafficability (slope/step/gap) | ≤5%/5mm/30mm |
navigation accuracy | ±10mm | |
Stop accuracy | ±10mm | |
Navigation angle accuracy | ±1° | |
Navigation speed (adjustable) | ≤1.5 m/s | |
Walking direction | Forward, backward, in-situ rotation, lateral movement | |
Safety induction range | 3m-15m adjustable | |
Battery parameters | battery capacity | 48V/24Ah Lithium iron phosphate |
Integrated endurance | 6h | |
Charging time (10-80%) | ≤1h | |
Charging form | Side charging/ground charging | |
Battery cycle times | Cycle 1500 cycles, with capacity ≥80% | |
Safety protection | Number of lidar | 2 |
emergency stop button | √ | |
loudspeaker | √ | |
atmosphere lamp | √ | |
anticollision bar | √ | |
function | Basic function | √ |
Wi-Fi roaming function | √ | |
Automatic charging function | √ | |
Shelf autonomous identification | √ | |
Servo function | √ | |
Accurate navigation of two-dimensional code | select to breed |
