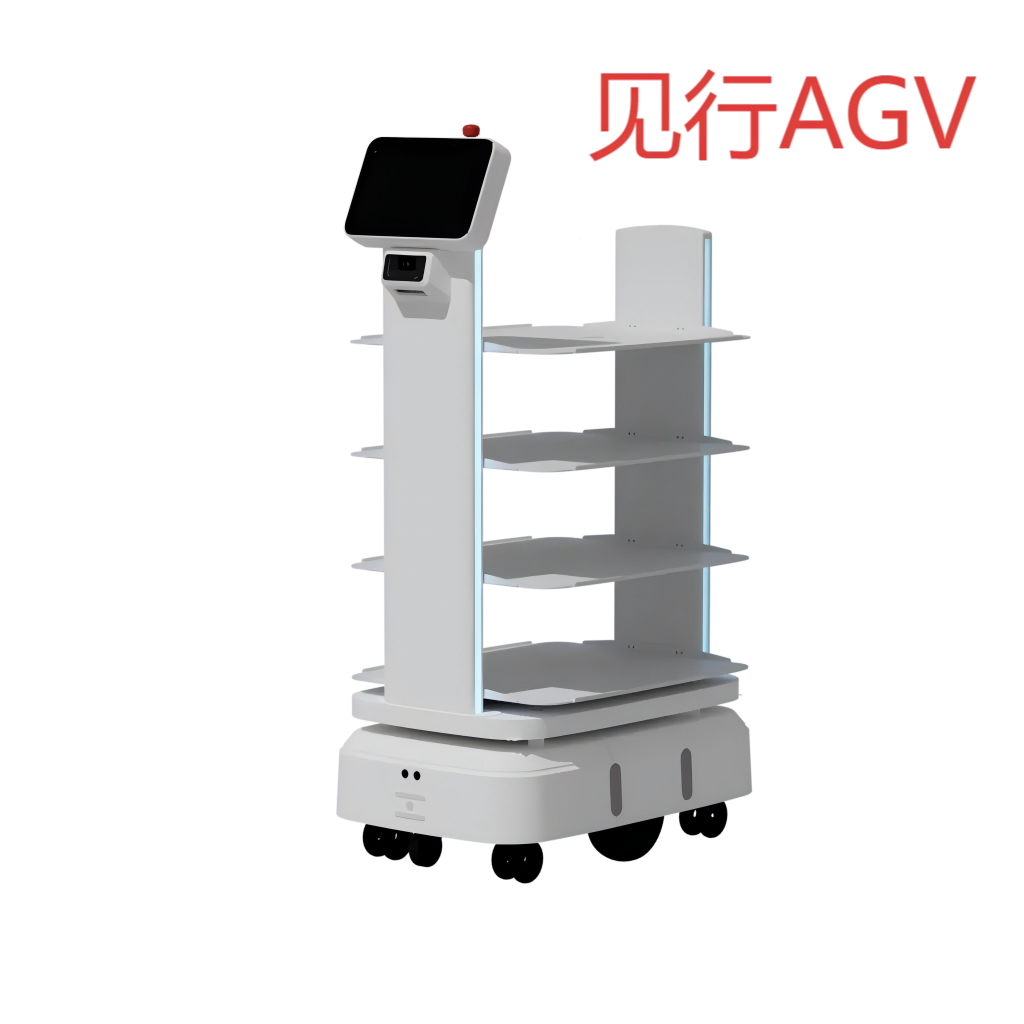

The intelligent sample feeding robot focuses on the material transfer requirements of industrial production lines, laboratories, warehouses and other scenes, and is equipped with laser SLAM autonomous navigation, supporting path planning and obstacle avoidance, with a positioning accuracy of 5 mm.
Contact online serviceThe intelligent sample feeding robot focuses on the material transfer requirements of industrial production lines, laboratories, warehouses and other scenes, and is equipped with laser SLAM autonomous navigation, supporting path planning and obstacle avoidance, with a positioning accuracy of 5 mm.
Equipped with flexible grasping mechanism, it is suitable for multi-specification sample containers, which can be seamlessly connected with MES and WMS system of production line to realize automatic sample access, trans-regional transfer and data traceability.
The fuselage protection grade is IP54, which supports 7×24 hours continuous operation, replaces manual sample delivery, improves transshipment efficiency, reduces labor cost, and meets the needs of unmanned upgrading of automatic production line.
Overall machine size（mm） | 570×500×1240 | 740×500×1240 | 740×500×1240 | 900×600×1240 |
Maximum bearing capacity(kg) | 80 | 150 | 300 | 300 |
Empty vehicle weight(kg) | 65 | 90 | 85 | 95 |
Bearing area(mm) | 500×424 | 580×500 | 620×500 | 770×600 |
screen size | 10.1inch | 10.1inch | 10.1inch | 10.1inch |
Minimum passing width | 60cm | 70cm | 70cm | 80cm |
top speed | 1.2m/s | |||
Navigation mode | Free navigation/orbital navigation/mixed navigation/following | |||
positioning accuracy | 10mm | |||
network | 4G/wifi | |||
battery | 12h battery life, 5h charging. | |||
authentication | CE/FCC/KC/NCC/EMC | |||
Extended peripheral | Elevator, automatic door, notice lamp and sound box, pager, follower bracelet, roller, box, shelf. | |||
