Your Location : Home > Products > Wheat wheel AGV

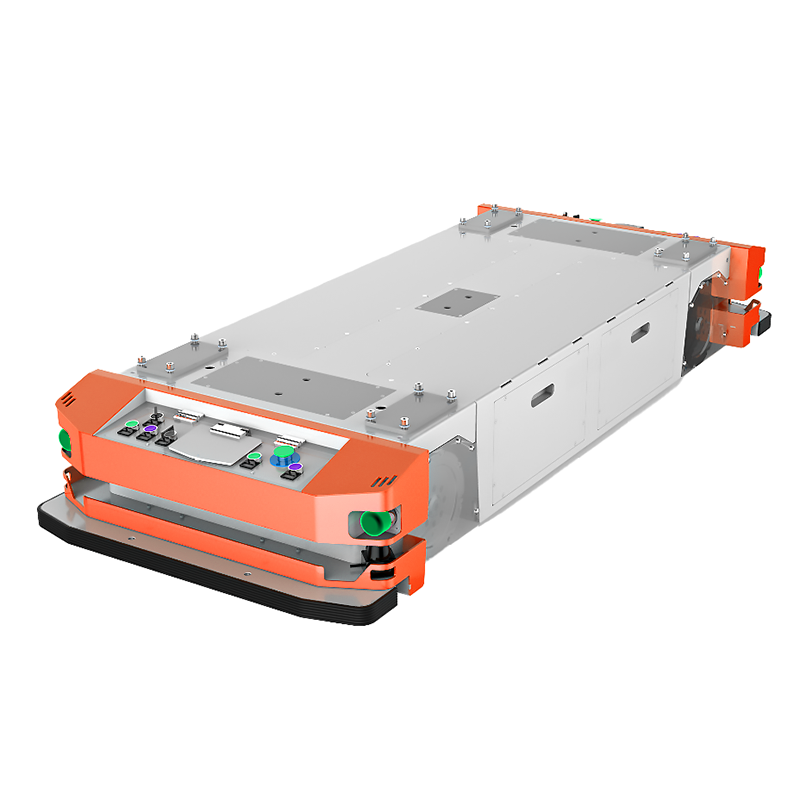

Omnidirectional backpack AGV vehicle

Omnidirectional backpack AGV vehicle
Omnidirectional backpack AGV vehicle

Introduce

The omnidirectional backpack AGV is an automated handling equipment with omnidirectional movement capabilities. Its core parameters include load capacity, navigation, speed, etc. Its functions focus on automatic docking, safety protection, and 24-hour operation, making it widely applicable in industrial scenarios such as automotive and electronics.

Contact online service
Overview Specifications parameter

Details of key functions Omnidirectional movement: Supports forward/backward/lateral movement/in-place rotation, adapting to narrow passages and complex path switching. Automatic docking: Through the use of rollers or traction mechanisms, automatic loading and unloading with external equipment (such as production lines, shelves) is achieved, enabling unmanned circulation. Intelligent charging: Supports automatic charging/battery replacement to meet the needs of 24-hour continuous operation. Safety guarantee: Equipped with multi-level protection (sensor detection + mechanical collision prevention + emergency stop button), with an emergency braking distance of ≤20mm. Applicable scenarios and selection recommendations Recommended industries: automotive manufacturing, electronics factories, warehousing and logistics, home appliances, furniture, and other scenarios requiring high-frequency material transfer. Key points for model selection: Choose magnetic navigation (low cost) or laser/QR code (high flexibility) for navigation mode based on accuracy requirements.

Basic Parameters

Name

Backpack transfer robot - JX-500B


Navigation Method

Laser SLAM Navigation


Drive Type

Mecanum wheel


Length × Width × Height (L × W × H)

L2000*W650*H350 (mm)


Net Weight (Including Battery)

500KG


Maximum Load

1000KG


Turning Radius

1500mm


rotating diameter

-

connection height

-

Support material size

-

Network Communication

WIFI/5G


Ambient Temperature and Humidity Range

Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing


IP Rating

IP20


Passability (Slope / Step / Gap)

≤5%/5mm/30mm


Navigation Positioning Accuracy

±5mm

Performance Parameters

Navigation Angular Accuracy

±1°


Navigation Speed (Adjustable)

≤1.5 m/s


Battery Capacity

48V/24Ah Lithium Iron Phosphate Battery


Overall Endurance

8h


Basic Parameters

Name

Backpack transfer robot - JX-500B

Navigation Method

Laser SLAM Navigation

Drive Type

Mecanum wheel

Length × Width × Height (L × W × H)

L2000*W650*H350 (mm)

Net Weight (Including Battery)

500KG

Maximum Load

1000KG

Turning Radius

1500mm

rotating diameter

-

connection height

-

Support material size

-

Network Communication

WIFI/5G

Ambient Temperature and Humidity Range

Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing

IP Rating

IP20

Passability (Slope / Step / Gap)

≤5%/5mm/30mm

Navigation Positioning Accuracy

±5mm

Performance Parameters

Navigation Angular Accuracy

±1°

Navigation Speed (Adjustable)

≤1.5 m/s

Battery Capacity

48V/24Ah Lithium Iron Phosphate Battery

Overall Endurance

8h

Battery Specifications

Charging Time (10-80%)

≤2h

Charging Method

Manual/Automatic

Battery Cycle Count

1500 cycles, Capacity ≥ 80%

Number of Laser Radars

2

Emergency Stop Button

Safety Protection

Speaker

Ambient Lighting

Anti-collision Strip

Basic Functions

Wi-Fi Roaming Function

Functions

Automatic Charging Function

Autonomous Shelf Recognition

Tracking Function

QR Code Precision Navigation

Optional
