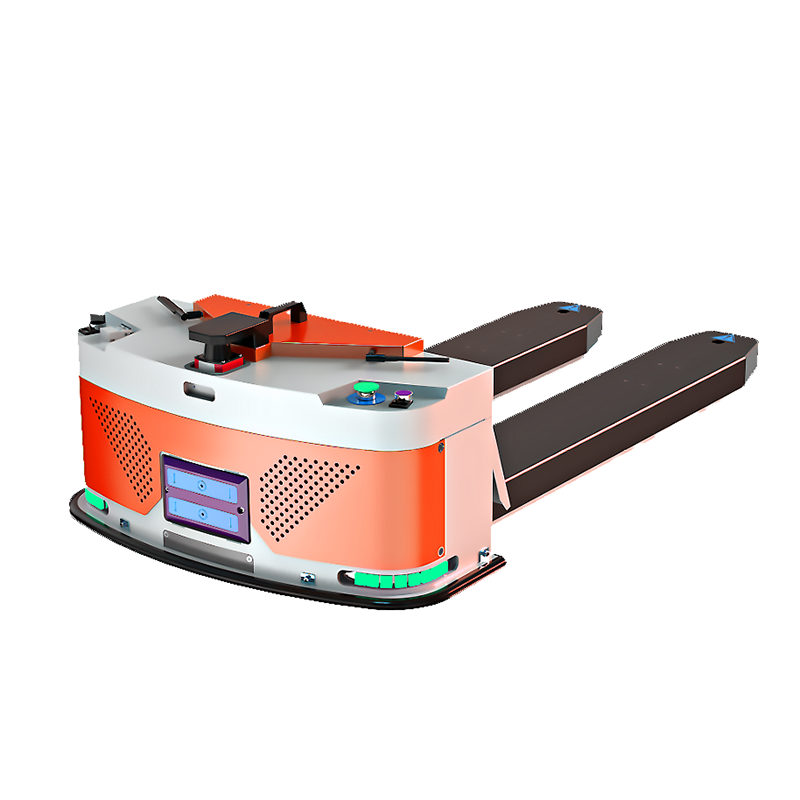

The pallet AGV forklift is an automated material handling equipment that operates autonomously through navigation technology. It features low damage, low cost, and easy maintenance, making it suitable for logistics warehousing, factory floors, and other scenarios. It can enhance efficiency and reduce reliance on manual labor.
Contact online servicePallet AGV forklifts facilitate cargo transportation through automation technology, offering several key advantages, including:
Automation and intelligence: Upon receiving a task, it automatically delivers the goods to the designated location and tracks the information and status of the goods with a computational monitoring software.
Safety and low damage: Equipped with anti-collision devices to avoid accidents and reduce damage to goods caused by manual operations.
Economical: Only requires initial production and ongoing maintenance investments, with no ongoing labor costs.
Flexibility: By utilizing natural navigation technologies such as laser SLAM, there is no need for ground positioning facilities, and the path can be flexibly adjusted.
Application scenarios
Suitable for logistics warehousing systems, automated factories, workshops, and other places, it can achieve:
Unmanned handling of raw materials, semi-finished products, and finished products;
Stacking and accessing goods in the warehouse to enhance the utilization rate of storage space;
Transport across floors.
Basic Parameters | Name | Handling forklift - JX-500B |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Mecanum wheel | |
Length × Width × Height (L × W × H) | L1100*W945*H500 (mm) | |
Net Weight (Including Battery) | - | |
Maximum Load | 500Kg | |
Lifting stroke | 100~150mm | |
pallet size | 1200*1000mm / 1100*1100mm | |
connection height | - | |
Support material size | - | |
Network Communication | WIFI/5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Performance Parameters | Passability (Slope / Step / Gap) | ≤5%/5mm/30mm |
Navigation Positioning Accuracy | ±5mm | |
Navigation Angular Accuracy | ±1° | |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h |
Basic Parameters | Name | Handling forklift - JX-500B |
Navigation Method | Laser SLAM Navigation | |
Drive Type | Mecanum wheel | |
Length × Width × Height (L × W × H) | L2000*W650*H350 (mm) | |
Net Weight (Including Battery) | - | |
Maximum Load | 500Kg | |
Lifting stroke | 100~150mm | |
pallet size | 1200*1000mm / 1100*1100mm | |
connection height | - | |
Support material size | - | |
Network Communication | WIFI/5G | |
Ambient Temperature and Humidity Range | Temperature: 0~50℃ / Humidity: 10~90%, Non-condensing | |
IP Rating | IP20 | |
Passability (Slope / Step / Gap) | ≤5%/5mm/30mm | |
Navigation Positioning Accuracy | ±5mm | |
Performance Parameters | Navigation Angular Accuracy | ±1° |
Navigation Speed (Adjustable) | ≤1.5 m/s | |
Battery Capacity | 48V/24Ah Lithium Iron Phosphate Battery | |
Overall Endurance | 8h | |
Battery Specifications | Charging Time (10-80%) | ≤2h |
Charging Method | Manual/Automatic | |
Battery Cycle Count | 1500 cycles, Capacity ≥ 80% | |
Number of Laser Radars | 2 | |
Emergency Stop Button | √ | |
Safety Protection | Speaker | √ |
Ambient Lighting | √ | |
Anti-collision Strip | √ | |
Basic Functions | √ | |
Wi-Fi Roaming Function | √ | |
Functions | Automatic Charging Function | √ |
Autonomous Shelf Recognition | √ | |
Tracking Function | √ | |
QR Code Precision Navigation | Optional |
